Current transformer
1. More energy saving
2. Dry design, lubrication-free, fireproof, explosion-proof, safe and environmentally friendly.
3. Low loss and low temperature heating, ensuring more stable operation.
4. Excellent short-circuit resistance, moisture and dust resistance, high reliability.
5. Low operating noise level, suitable for rooms with increased sensitivity to noise.
6. Maintenance-free design with long service life.

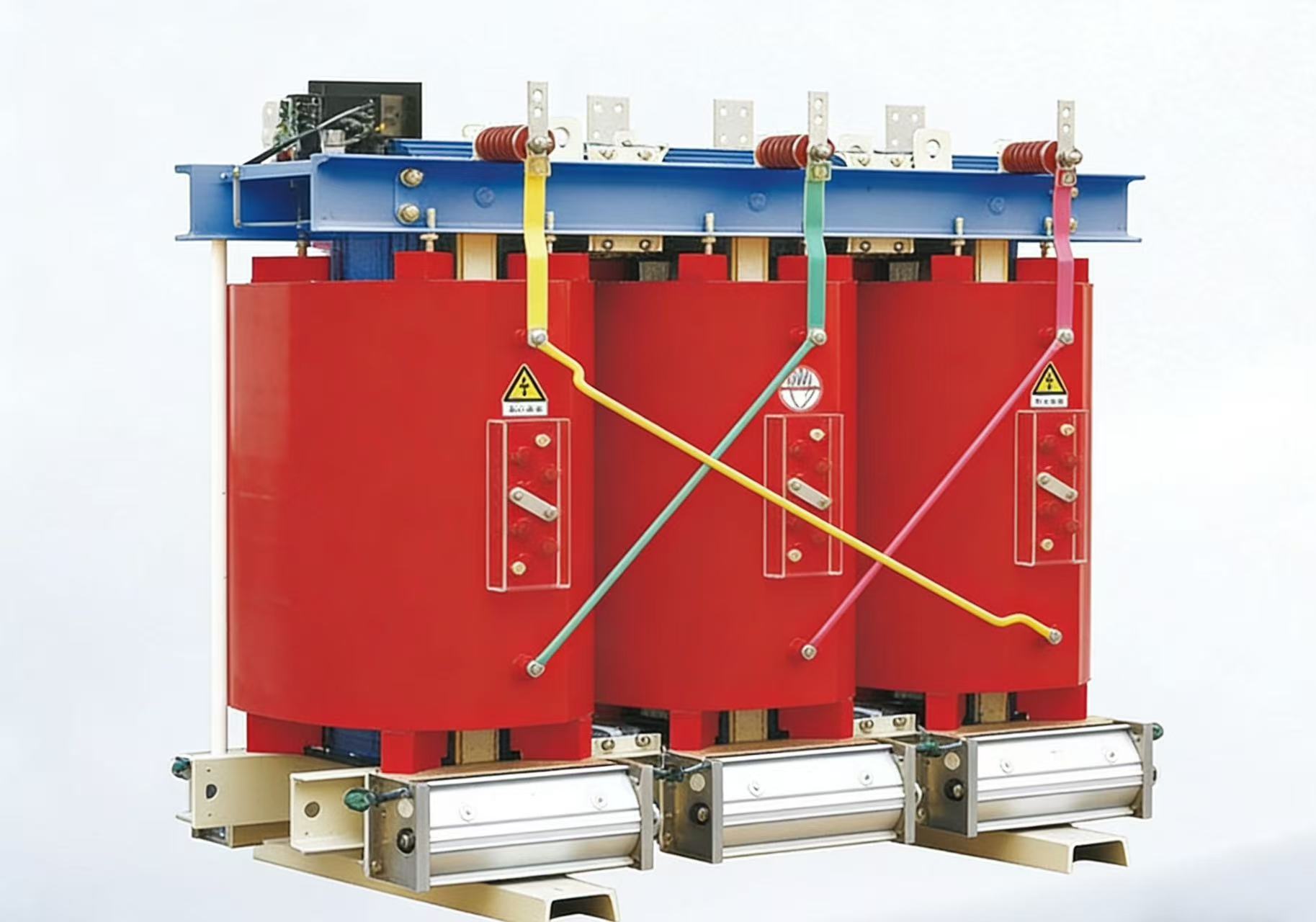

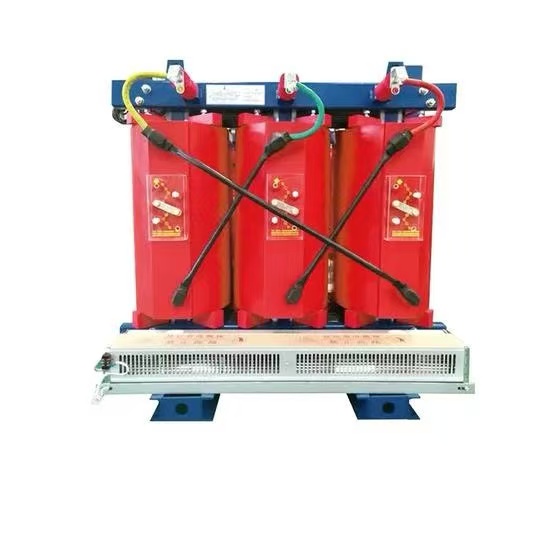

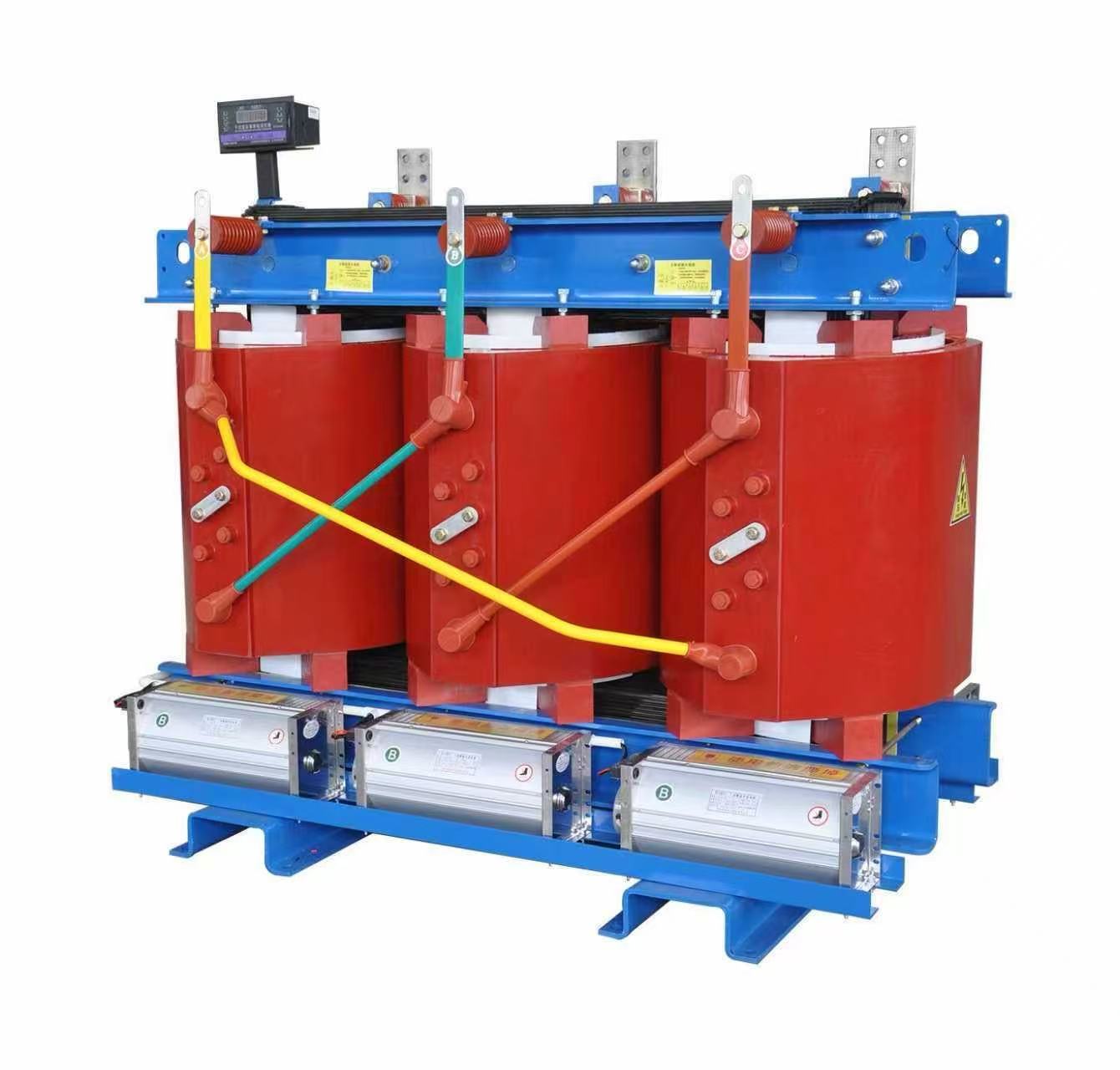

Product Description: SCB13 series dry type transformer made of epoxy resin
.
1. Introduction to the product
The SCB13 series isdry transformers10 kV class, manufactured using epoxy resin casting method.
Due to its low loss, low noise, fire protection, environmental friendliness, safety and reliability, it is widely used in indoor power distribution areas with high requirements for energy saving, safety and environmental protection. It has become the main drytransformerfor modern new construction projects and key facilities.
2. Technical parameters (customizable)
Rated power: 10 kVA-5000 kVA
Nominal voltage: 10 kV/0.4 kV
Phase: Three phase
Connection group: Dyn11, Yyn0
Tap adjustment: Off-circuit tap adjustment ±2×2.5%
Insulation class: Class F
Cooling mode: AN/AF (natural air cooling / forced air cooling)
Protection class: IP20, IP30, IP40 (optional)
Energy efficiency level: Level 2
Operating conditions: indoors, -25℃ to +45℃
3. Main characteristics
Level 2 energy efficiency, ultra-low energy consumption.
Its power losses are significantly lower than those of the SCB10 and SCB12 series, as well as its no-load and load losses. This allows for long-term energy savings and significantly reduces operating costs.
Dry type, oil-free, fire-resistant and explosion-proof.
Made using epoxy resin casting, it is fire-resistant and self-extinguishing, leak-proof, and poses no fire hazard. It can be installed in basements, distribution boards, and high-traffic areas.
Low noise design
The optimized core structure and winding process ensure lower operating noise, making it suitable for noise-sensitive areas such as residential complexes, hospitals, schools and office buildings.
Excellent short circuit resistance
The windings have high mechanical strength and excellent insulating properties, as well as high resistance to impacts and lightning, which ensures stable and reliable operation.
Water- and dust-proof, highly adaptable.
It can work stably in humid and dusty environments, and can also start directly without pre-drying after shutdown, having high adaptability to various environmental conditions.
It does not require maintenance and has a long service life.
It is oil-free and leak-proof, requiring no daily maintenance, resulting in low operating and maintenance costs and a long service life.
Flexible and convenient installation
Due to its compact size and light weight, it does not require an oil tank or firewall and can be installed directly indoors with simple construction work.
4. Applications
New residential complexes, commercial complexes, high-rise buildings, basements
Hospitals, schools, data centers, airports, metro stations, train stations
Industrial parks, factories, power distribution centers, key municipal projects.
Shopping centers, hotels, office buildings, key fire safety units.
Indoor power distribution projects with high energy efficiency, noise insulation and safety requirements.
