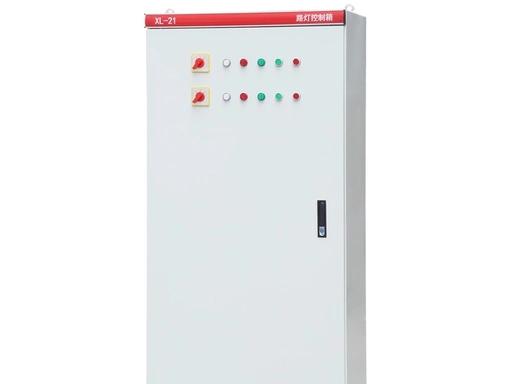

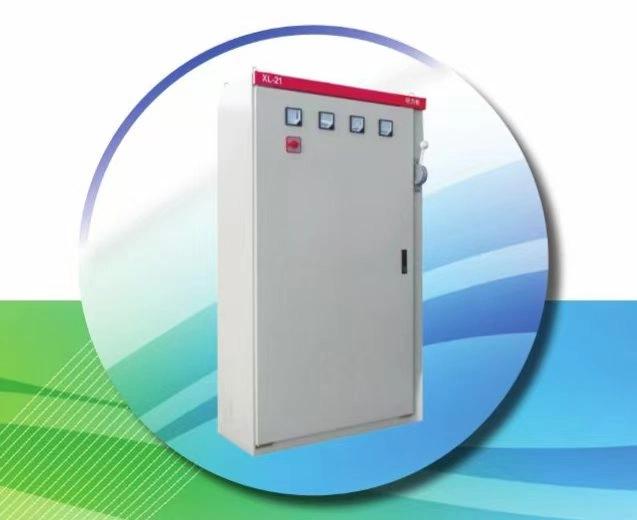

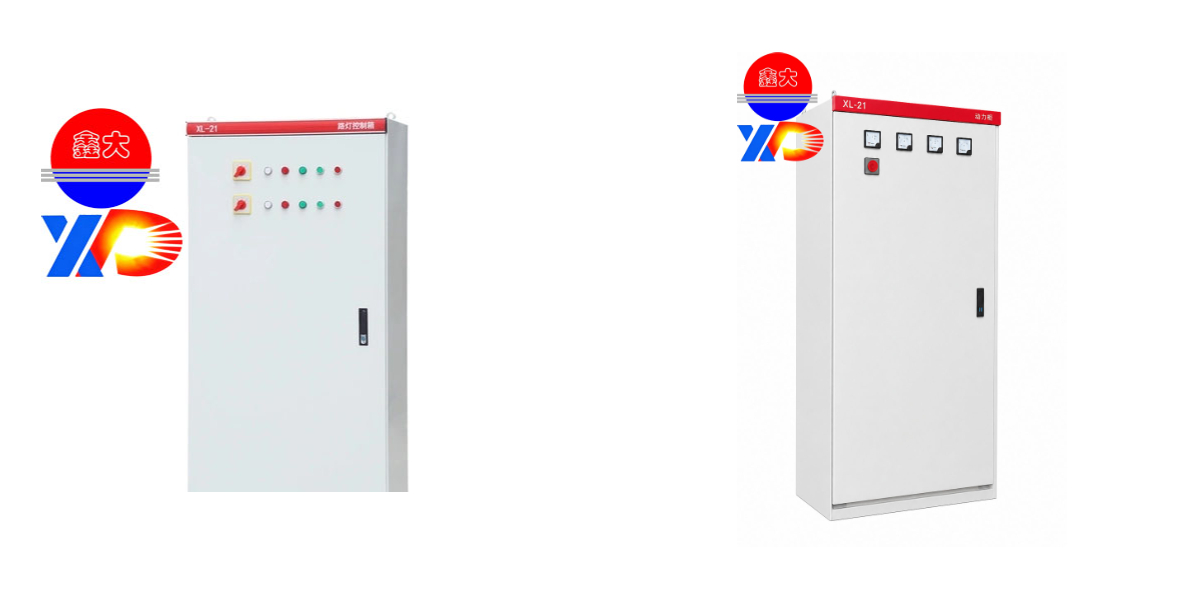

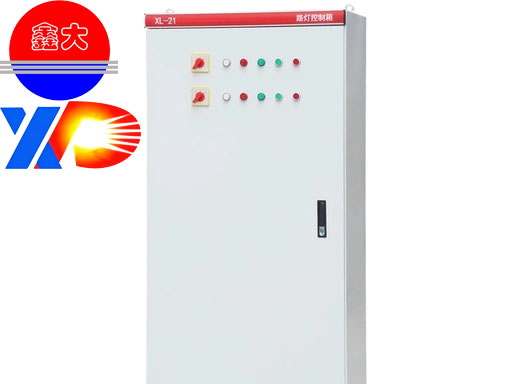

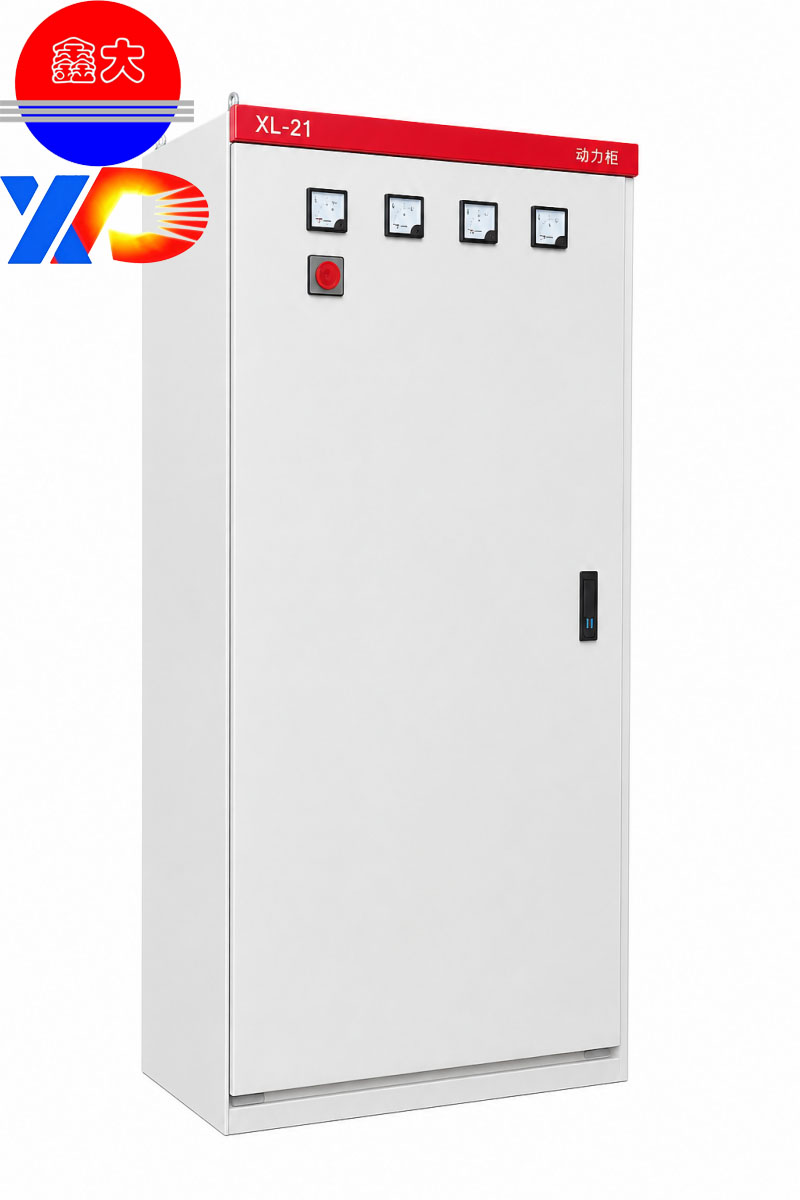

Custom-made metal-enclosed switchgear.

I. Product Overview

XL series indoor distribution cabinets for low-voltage systems are suitable for various power distribution scenarios. They are mainly used in low-voltage distribution systems with an AC frequency of 50 Hz, a rated operating voltage of 380 V/550 V, and a maximum rated current of up to 630 A. They serve as essential auxiliary equipment for power supply in industrial production, civil buildings, and infrastructure.

The main body of this cabinet is made of a closed steel structure, featuring high strength, excellent protective performance, rational layout, standardized wiring, and convenient maintenance. It can be flexibly configured with various components such as circuit breakers, contactors, thermal relays, current/voltage transformers, smart meters, frequency converters, soft starters, reactive power compensation devices, etc., to achieve integrated functions such as power distribution, equipment control, line protection, operation monitoring, metering management, and remote communication. It is widely used in various scenarios such as industrial enterprises, civil buildings, infrastructure, computer rooms, construction sites, etc., and is one of the most common, technologically mature, and cost-effective standardized equipment sets in the field of low-voltage distribution.

II. Main Structure and Detailed Features

(1) Cabinet Construction: Sturdy with appropriate protective measures.

Material and Technology: The cabinet is made of high-quality cold-rolled steel sheets with a thickness of 1.5–2.0 mm, formed through CNC bending and precision welding (or modular assembly). The frame structure is stable, with high mechanical strength, capable of withstanding short-circuit impacts and long-term loads, and is resistant to deformation and corrosion.

Full Protection Design: A fully enclosed internal structure is adopted. The cabinet door fits tightly against the body and is equipped with a special sealing gasket, effectively preventing the ingress of dust and foreign objects. The cabinet door is fitted with a safety lock to prevent improper operation and accidental contact with live parts by unqualified personnel, significantly enhancing the operational safety of the equipment.

Cabinet dimensions and installation: Standard cabinet dimensions can be adjusted according to actual needs. Common dimensions (height × width × depth) are 1800×800×600 mm, 2000×1000×800 mm, etc., suitable for distribution rooms of various sizes. The cabinet is installed indoors on the floor, with mounting holes at the bottom, ensuring a secure connection to the floor and foundation beam, making installation convenient.

(2) Internal layout: Scientific zoning, standardized layout

Zoning structure: The cabinet body is scientifically divided into four independent zones, with a clear layout and no interference.

Busbar zone: Located at the top of the cabinet and connected by copper (or aluminum) bars.

Component installation zone: Located in the center of the cabinet, where main components such as circuit breakers, contactors, thermal relays, etc., are concentrated.

Wiring and heat dissipation: Flame-retardant copper cables with a diameter matching the required load are used for wiring. The wiring is reliable, with low contact resistance, eliminating the risk of overheating. Clear labeling: All components, terminals, and lines inside the cabinet are clearly marked, including component models, line numbers, and usage instructions. This facilitates daily inspections, maintenance, and troubleshooting, as well as simplifying operation and maintenance.

(4) Scalability and customization: The ability to flexibly adapt to different requirements.

Reserved space for expansion: Sufficient space is reserved inside the cabinet for installation and terminal blocks.

Customization: Personalized configuration schemes can be tailored according to the user's load type, management method, protection requirements, installation conditions, etc.

Flexible inlet and outlet pipes: Various input and output modes are supported, such as top input and top output, top input and bottom output, bottom input and bottom output, etc. They can be flexibly selected based on the on-site cable layout and bridge position, adapting to different construction scenarios and improving work efficiency.

III. Main Functions and Application Value

(1) Main Functions

Power Distribution Function: Safely and stably distribute electrical power from the main power source (e.g., low-voltage distribution cabinets, transformers) to various loads (e.g., motors, fans, water pumps, lighting equipment, office equipment, etc.), ensuring rational power supply planning and efficient use of electricity.

Line and Equipment Protection Function: Equipped with a complete set of protective components to provide comprehensive protection, preventing damage to lines and equipment.

Short-Circuit Protection: Quickly disconnect short-circuit current using circuit breakers to prevent the spread of short-circuit faults and protect power lines and equipment.

Overload protection: Thanks to the overload protection function provided by thermal relays or circuit breakers, prolonged operation of equipment under overload conditions is prevented, thereby extending its service life.

Phase failure protection: For three-phase electric motors, a phase failure protection module is provided to prevent the motor from burning out due to phase failure.

(2) Application value

Ensuring stable power supply: Comprehensive protection functions and a reliable design guarantee continuous operation of equipment over long periods, reducing power supply interruptions and ensuring reliable power supply to the load.

Enhancing safety level: Enclosed protection, protection against accidental faults, and comprehensive line protection eliminate potential risks of electric shock and equipment failure, ensuring the safety of personnel and equipment.

Reduced operational and maintenance costs: Convenient design, modular structure, and no need for frequent maintenance reduce labor and material costs for operation and maintenance, as well as lower the overall lifecycle cost.

Optimized energy management: Precise metering and reactive power compensation functions help users monitor energy consumption, reduce energy losses, and achieve energy savings and emission reductions.

Flexible and versatile adaptability: Customizable configuration and expansion capabilities meet the specific needs of different scenarios and loads without requiring repeated investments, improving equipment utilization efficiency. Rated voltage

Special AC voltage levels of 380V/660V can be customized according to customer requirements.

Rated current: 100 A, 250 A, 400 A, 630 A. Suitable for all usage scenarios, from small distribution networks to medium industrial loads, and can also be customized to meet higher current requirements.

Busbar rated current: 100–630 A. Made of copper/aluminum bar, meets rated current, with low contact resistance and high current-carrying capacity.

Protection level: IP30 (standard), IP40 (optional). IP30: prevents finger contact with live parts and dust; IP40: dust and moisture protection, suitable for harsh environments.

Enclosure dimensions: can be customized to any size according to user requirements and component configuration.

Operating conditions: Temperature: -5℃ to +40℃; Humidity: ≤95% (non-condensing); Altitude: ≤2000 meters.

IV. Key Product Advantages (Key Differentiators)

High compliance with standards: Designed and manufactured in strict accordance with national and industry standards, having undergone a full set of type tests and factory inspections to ensure product quality, and can smoothly pass acceptance by energy authorities and regulatory bodies.

Comprehensive protection: Enclosed structure + IP30 or higher protection rating, effectively preventing dust ingress, accidental contact, and foreign object intrusion; equipped with a full range of protective functions such as short-circuit, overload, phase failure, and undervoltage protection, fundamentally eliminating potential equipment failure risks and threats to personal safety.

Structural stability: High-quality cold-rolled steel body structure combined with precision welding, featuring high mechanical strength, capable of withstanding short-circuit impacts, resistant to deformation and corrosion, ensuring stable and reliable operation.

Flexible configuration: Depending on the load type, control method, and protection requirements, components such as circuit breakers, contactors, inverters, and smart meters can be freely combined to meet various needs.

Customizable dimensions: The cabinet size can be adjusted according to requirements to fit different distribution room dimensions without the need for additional on-site modifications.

Expanded functionality: ample space for expansion, allowing flexible addition of circuit branches, intelligent modules, reactive power compensation devices, etc., reducing upgrade costs.

Front-side operation and maintenance: All operations and maintenance can be performed from the front of the cabinet, eliminating the need for additional space, simplifying operation and maintenance.

Modular design: components are installed in a modular manner, making replacement easier, reducing downtime, and improving operation and maintenance efficiency.

Does not require frequent maintenance: the main components are made of high-quality materials from well-known brands, ensuring stable operation. Under normal conditions, only regular visual inspection is needed, with no need for frequent disassembly and maintenance, reducing labor and material costs for operation and maintenance.

V. Applicable Scenarios (Full Coverage of Scenarios)

Production workshops: Power distribution and management for power equipment such as fans, water pumps, air compressors, machine tools, production lines, and conveyor belts.

Mining industry/Metallurgy: Power distribution for mining machinery and metallurgical production lines in environments with high dust levels and strong vibrations.
