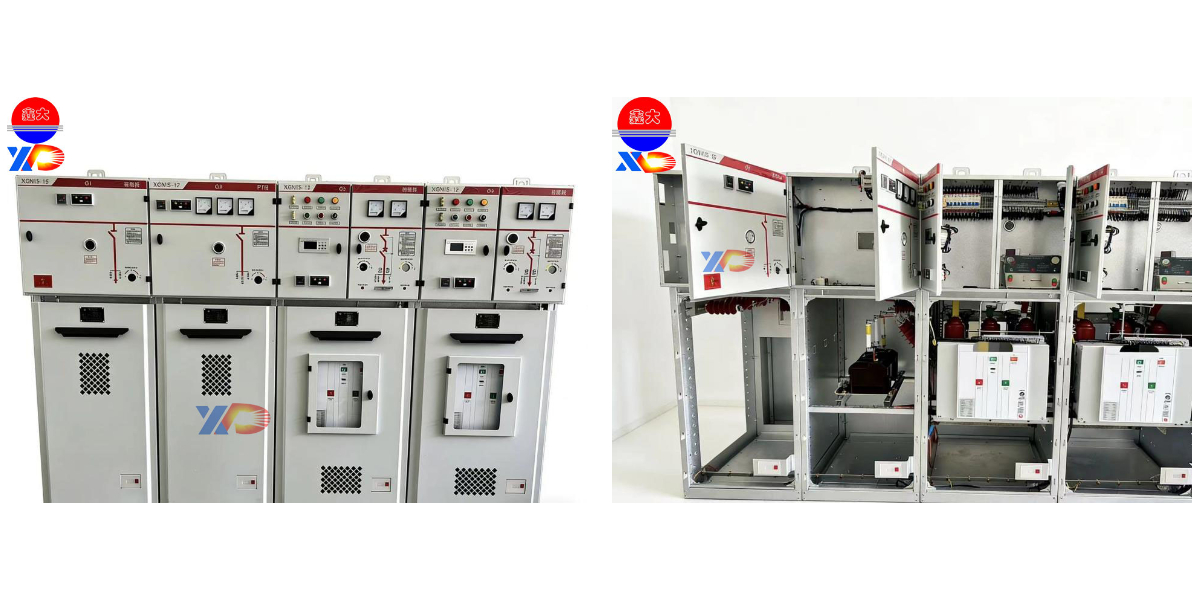

Energy efficient switchgear in a metal enclosure
1. Compact and space-saving modular design.
2. High level of security due to complete locking and reliable insulation.
3. Maintenance-free SF₆ sealed structure, long service life.
4. Flexible configuration for different distribution systems.
5. High adaptability to the environment and ease of operation.
6. Cost effective, with low overall operating costs.
I. Product Overview
XGN15‑12 is a stationarybox-type AC switchgear in a metal enclosure, also known asring distribution blockSF₆, designed for power distribution, control and protection in 12 kV distribution systems.
2. Key technical parameters
Nominal voltage: 12 kV
Nominal frequency: 50 Hz
Rated current: 630 A
Rated short-time withstand current: 20 kA / 3 s
Rated peak withstand current: 50 kA
Main switch: Three-position SF₆ load switch (FLN36) or combined load switch and fuse.
Protection class: IP4X
Typical dimensions: W 375/500 mm × H 1635 mm × D 1000 mm
3. Product characteristics
Compact design, small size, light weight and modular design.
A complete set of five anti-blocking functions, high level of security.
Sealed SF₆ tank, maintenance-free, long service life.
Manual or electric control, front and rear service access.
Suitable for ambient temperatures: -25℃ to +40℃, altitude ≤ 2000m.
4. Typical Applications
Urban electricity distribution networks, ring distribution devices and distribution substations.
High-voltage section of box substations
Industrial and mining enterprises, commercial buildings, residential power supply.
New energy (solar, wind) box substations and infrastructure projects.
