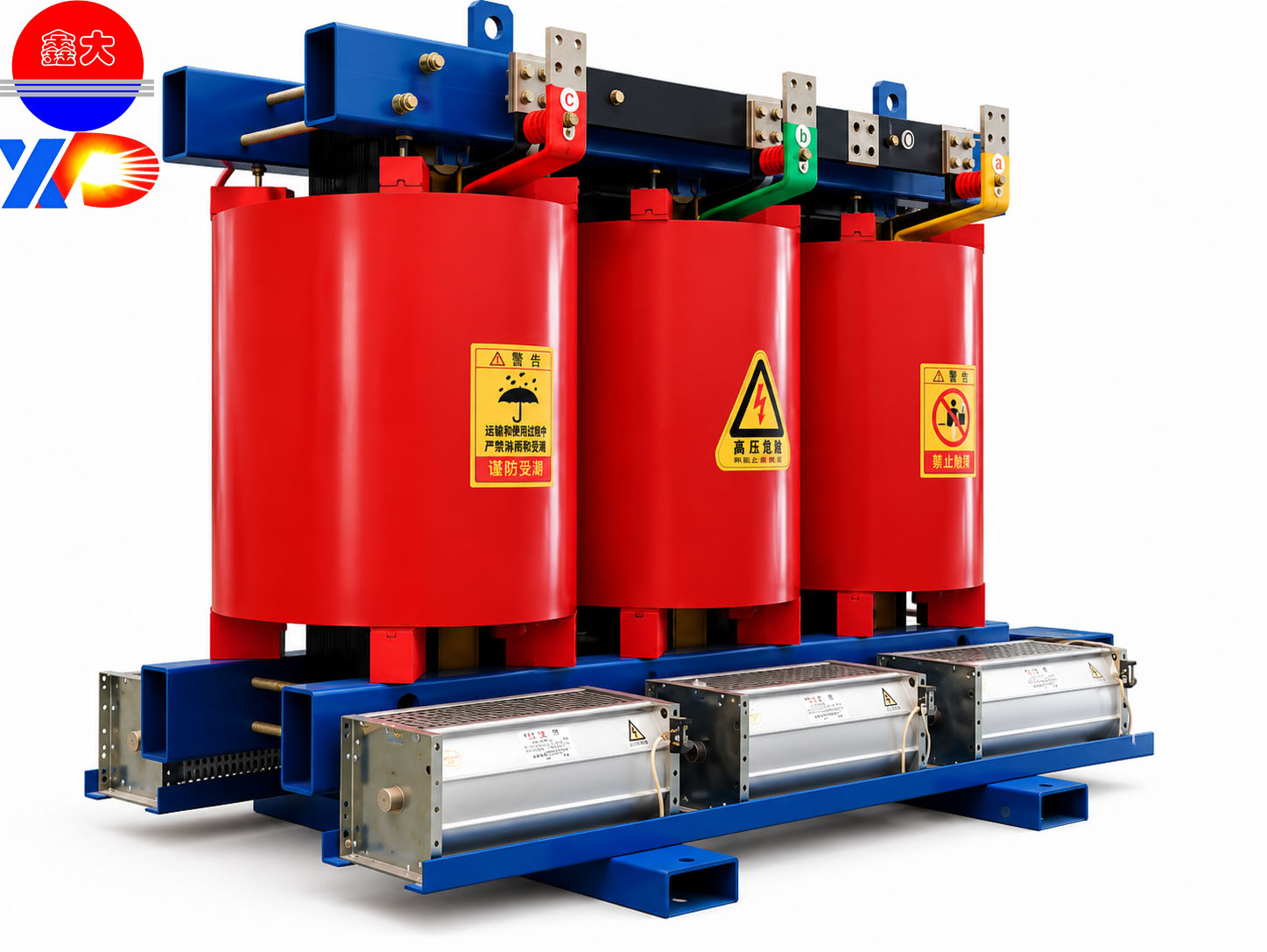

dry transformer
Epoxy resin casting, fire-resistant, explosion-proof, flame-retardant, suitable for indoor use and crowded places.
High mechanical strength, resistant to short circuits and impacts, stable operation.
Moisture-proof and dust-proof, maintenance-free, suitable for humid and dusty environments.
Low loss, low noise, energy-saving and power-efficient, high economic efficiency in long-term operation.
Compact size, light weight, easy to install, can be mounted directly on the wall.
I. Product Overview
SCB series transformers are three-phase dry-type epoxy cast transformers, serving as energy-saving indoor power distribution equipment. The windings are vacuum-cast with epoxy resin, ensuring oil-free, fire-resistant, explosion-proof, and environmentally friendly operation. They are suitable for locations with high safety requirements, such as high-rise buildings, shopping malls, hospitals, subways, factories, and data centers.
II. Structural Features
Iron Core: High-quality cold-rolled grain-oriented silicon steel sheets with fully 45° mitered joints and no perforation, ensuring low losses and low noise levels.
Windings: High-voltage coils are manufactured using vacuum epoxy resin casting, offering high mechanical strength, short-circuit resistance, and impact resistance.
Insulation: Class F/H, fire-resistant and self-extinguishing, environmentally friendly, can be directly installed in the load center.
Cooling: Natural air cooling (AN) / Forced air cooling (AF).
Protection: Can be equipped with IP20 and IP30 protective enclosures, ensuring safety and reliability.
III. Product Advantages
Safety and fire protection: Oil-free, non-flammable, explosion-proof, no need for oil storage or fire safety compliance.
Excellent performance: Low losses, high overload capacity, low temperature rise, and reliable operation.
Maintenance-free: Moisture-proof and dust-proof, no oil leakage, virtually maintenance-free.
Environmental friendliness: Low noise, energy-saving, adaptable to humid and dusty environments.
Simple installation: compact size, light weight, and flexible placement indoors.
IV. Main Technical Parameters (Customizable)
Rated voltage: 10 kV/0.4 kV
Connection Group Marking: Dyn11
Impedance Voltage: 4% (Standard Capacity Range)
Insulation Class: Class F
Cooling Method: AN/AF (Natural Air Cooling / Forced Air Cooling)
Protection Rating: IP20 / IP30 (Optional)
Rated Power: 10 kVA-5000 kVA
Enterprise Standards: GB/T 10228, GB 20052
