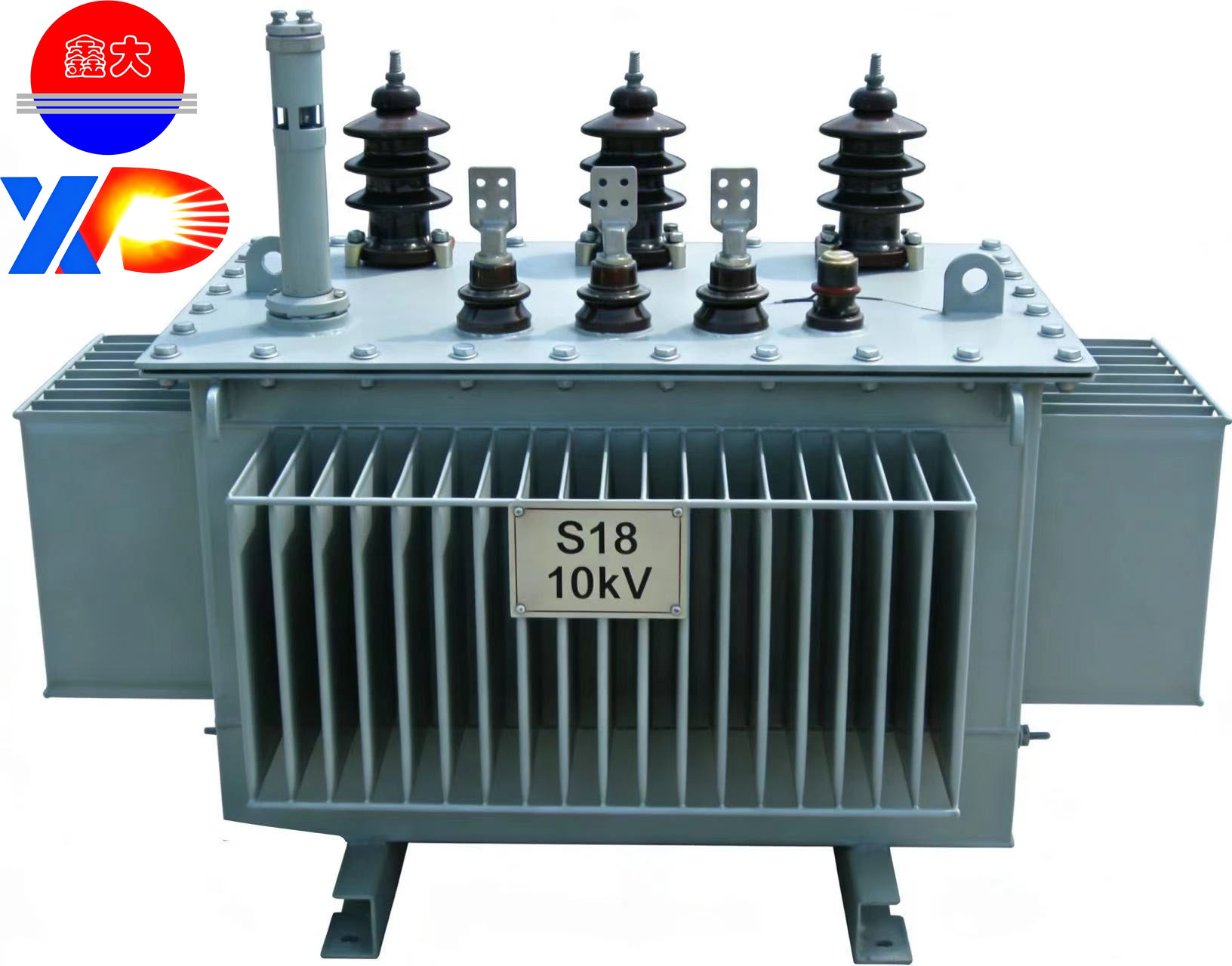

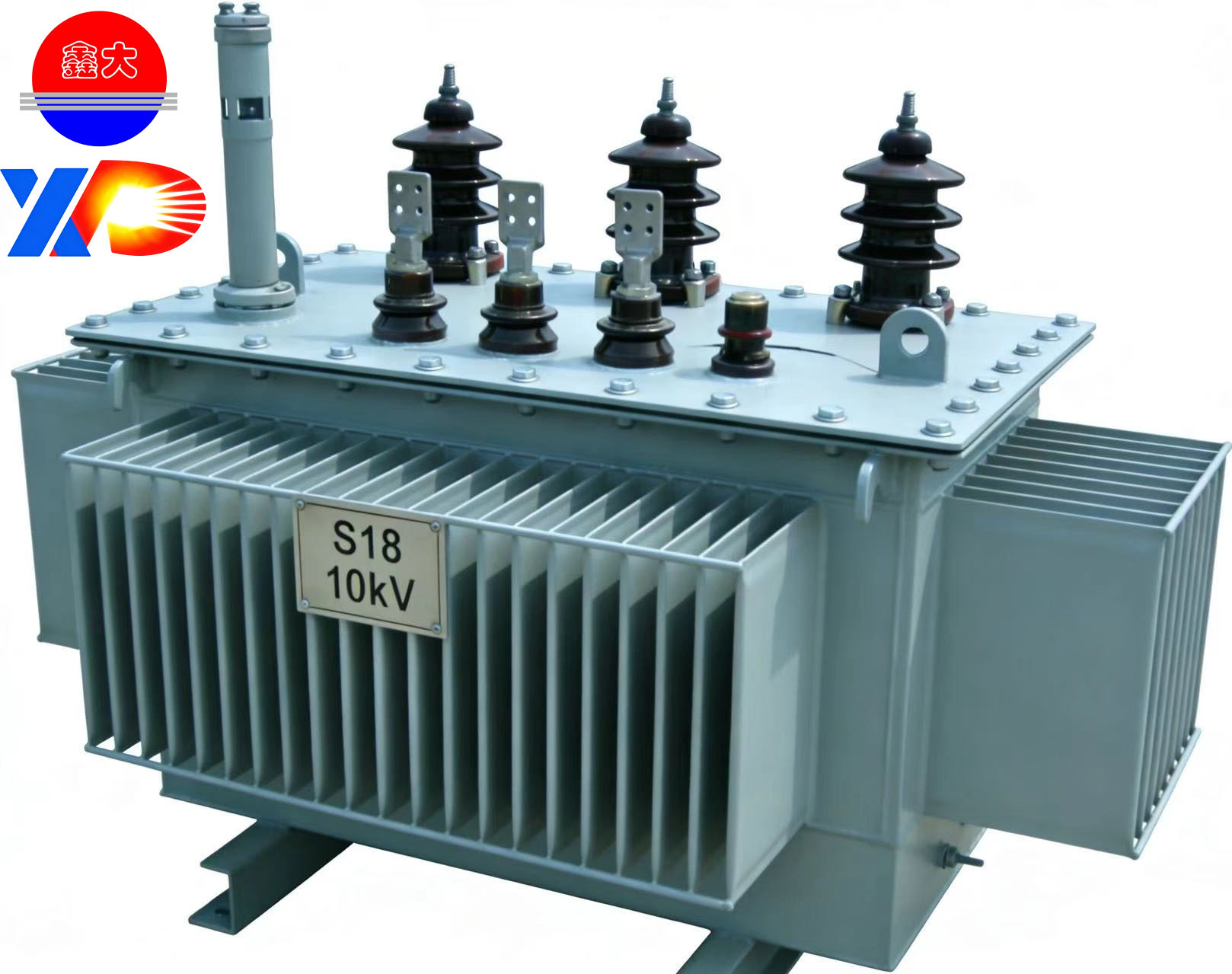

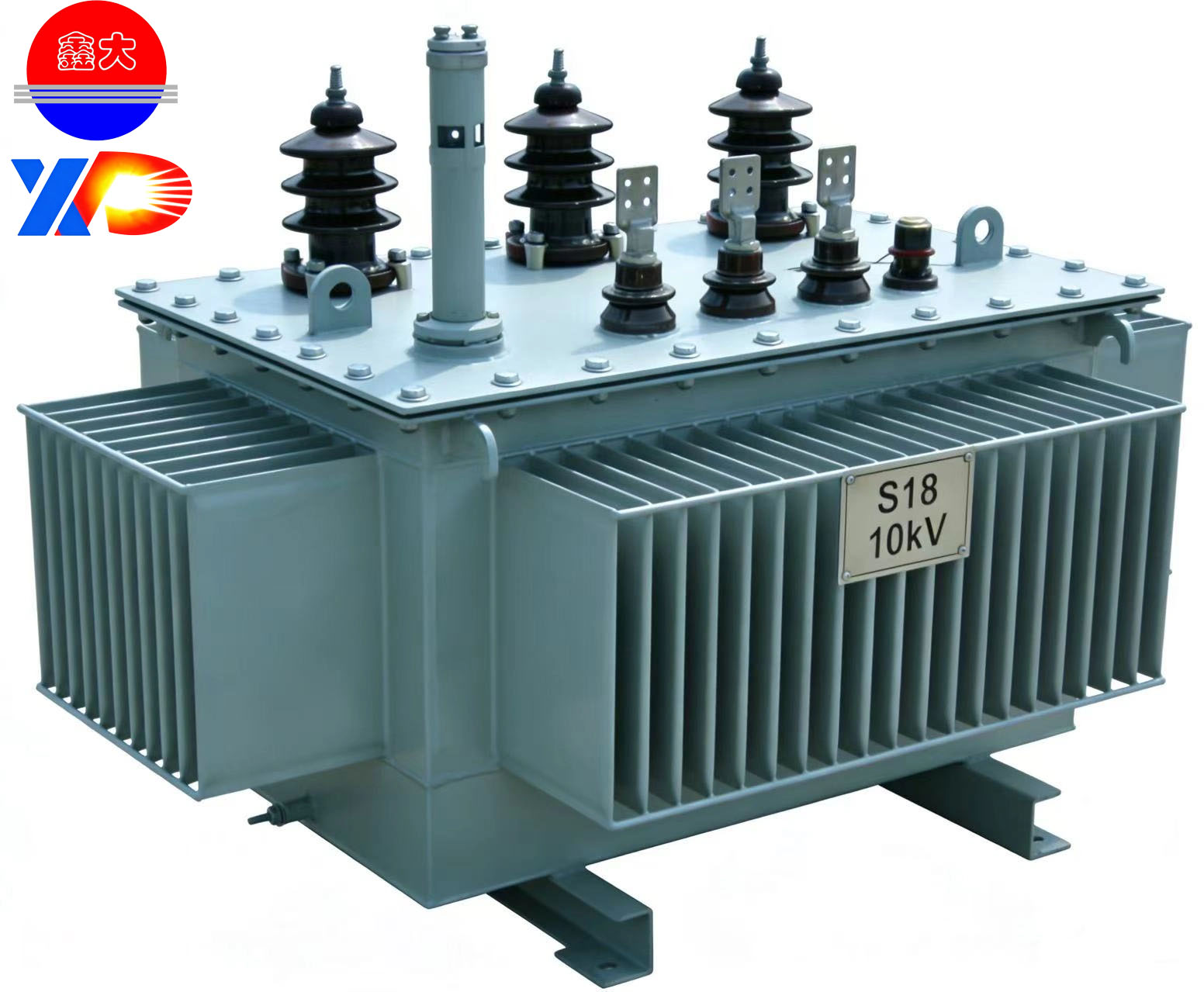

S Series - Sealedoil-immersed distribution transformer
I. Product Introduction
The S series is a highly efficient and energy saving three-phase fully sealeddistribution transformer, immersed in oil. It features a high-permeability silicon steel core, full copper windings, and a corrugated, fully sealed oil tank.
With ultra-low loss rate, high reliability, maintenance-free operation and long service life, this product is a standard energy-savingoil-immersed transformercoating widely used in new power grids, industrial and commercial power distribution, renewable energy systems and public buildings.
II. Basic technical parameters (customizable)
Rated power: 10KVA-5000KVA
Vector group: Dyn11 (recommended), Yyn0
Cooling method: ONAN (Oil Natural Air Natural)
Insulation class: class A, temperature rise ≤ 60 thousand
Impedance voltage: 4.0% – 6.0% (depending on capacity)
Energy efficiency level: high efficiency and energy saving
III. Main Features
1. High Efficiency and Energy Saving — Absolute Energy Saving
. Long-term energy costs and ensuring a quick return on investment.
2. Without
Maintenance The corrugated oil tank seals out air and moisture, preventing aging of the insulation oil and ensuring lifetime replacement and maintenance-free operation.
3. Strong resistance
Short circuit resistance: Full copper windings, optimized ampere distribution and robust design ensure high short circuit resistance and stable operation.
4. Low noise and low vibration
The multi-stage peer core design and anti-attenuation design effectively reduce noise and vibration, which is suitable for residential areas, schools and hospitals.
5. Excellent overload and adaptability to
environment. Optimized cooling of oil channels allows for short-term operation under overload conditions. Suitable for outdoor installations, pole-mounted systems, and box-type substations, adapting to high and low temperatures, humidity, and dusty environments.
6. Safe, reliable and long lasting
Service. Equipped with pressure relief valves, temperature control, and gas protection, ensuring high operational safety and slow insulation aging for a longer service life.
IV. Application Scenarios
-
Construction and modernization of electrical networks: urban and rural distribution networks, block substations, as well as outdoor transformer installations on supports.
-
Industrial and commercial facilities: industrial zones, manufacturing plants, shopping centers, hotels, office complexes.
-
Social infrastructure: medical institutions, educational institutions, data processing centers, railway transport, airports and train stations.
-
Renewable energy projects: solar and wind energy, as well as energy storage and distribution systems.
-
High-demand applications include high-load, long-term projects, and projects with stringent energy efficiency and noise reduction standards.
