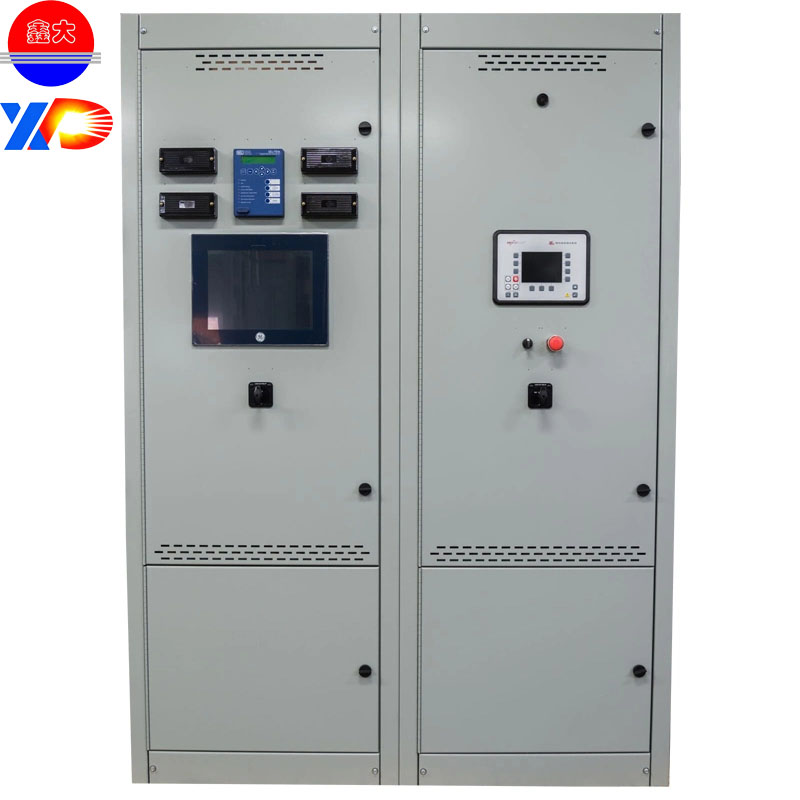

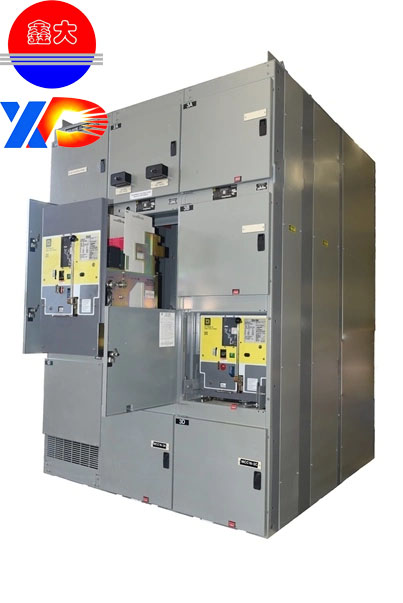

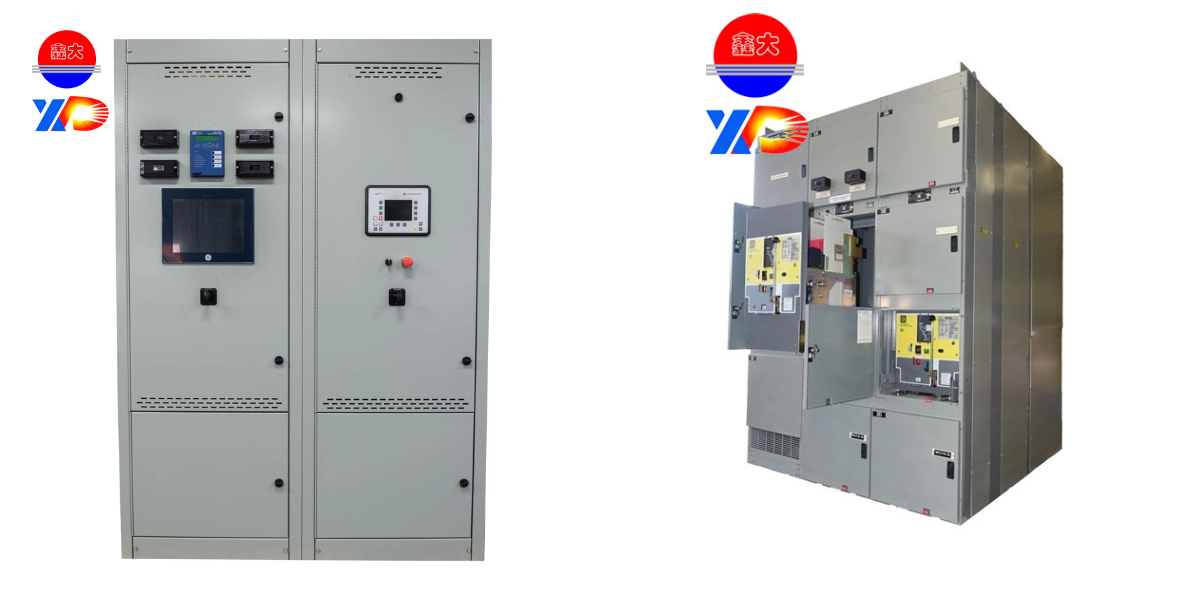

Switching and distribution equipment
1. Compact design with small footprint, ideal for space-constrained applications including distributionpremises,transformer substations and rooms with a loop network.
2. Cost-effective solution with excellent cost-performance ratio, lower than average cabinets, and requires minimal investment.
3. Convenient operation with minimal maintenance requirements, a robust design, and a low failure rate, ensuring maintenance-free operation.
4. Fully sealed and insulated design provides excellent protection from wet and dusty conditions.
5. Comprehensive protective interlocks featuring reliable "Five Preventions" functions to prevent operational errors.
6. Compatible with both loop network and terminal power supply systems, suitable for urban/rural networks, industrial parks and residential distribution networks.
7. Easy installation using single or multi-unit panel with short construction time.
1. Product introduction
This is an indoor fixed 10 kVhigh-voltage ring, which utilizes a combined switch-fuse circuit. It features a compact design, economical cost, and high reliability. It is primarily used for ring grid power supply, terminal power supply, and distribution and protection of electricity in distribution networks.
With the advantages of small size, low cost, easy operation and no maintenance, it is the main medium voltage power distribution equipment for urban and rural power grids, residential areas, industrial parks and box-type substations.
2. Basic technical parameters (customizable)
Nominal voltage: 12 kV
Rated current: 630A
Rated short-circuit breaking current: 20 kA/2 s
Protection class: IP30
Insulation type: air/full insulation
Operating mode: manual / motorized
Implementing standards: GB 3906, IEC 62271
3. Standard environmental conditions
It is suitable for indoor environments with an altitude of no more than 1000 m, ambient temperatures from -5°C to +40°C, an average daily relative humidity of no more than 95%, no condensation or freezing, no explosion hazard, no corrosive or flammable gases, no conductive dust, and no strong vibrations. The installation inclination should not exceed 3°, and the seismic intensity should not exceed 8°. For special conditions, such as high altitudes, low temperatures, high temperatures, humid salt fog, dusty corrosion, etc., customized solutions can be provided, such as improved insulation, heating, anti-corrosion sealing, etc., to meet the requirements of the application.
