dry type transformer installed on site
1. Energy saving and low consumption: lower loss compared to traditional models, saving energy in the long term and low operating costs.
2. Safe and environmentally friendly: oil-free, fireproof, explosion-proof, can be installed in high-density places such as indoors and basements.
3. Stability and reliability: moisture resistance, short circuit resistance, low noise and long service life.
4. Intelligent and convenient: equipped with overheating protection system, easy to maintain and widely applicable.
1. Product overview

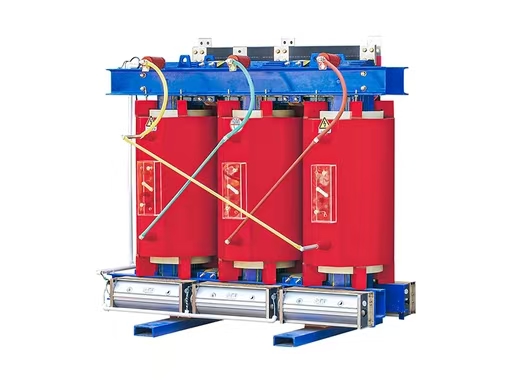

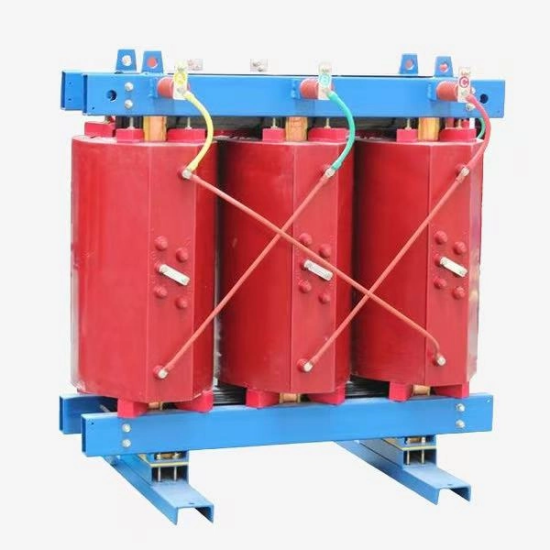

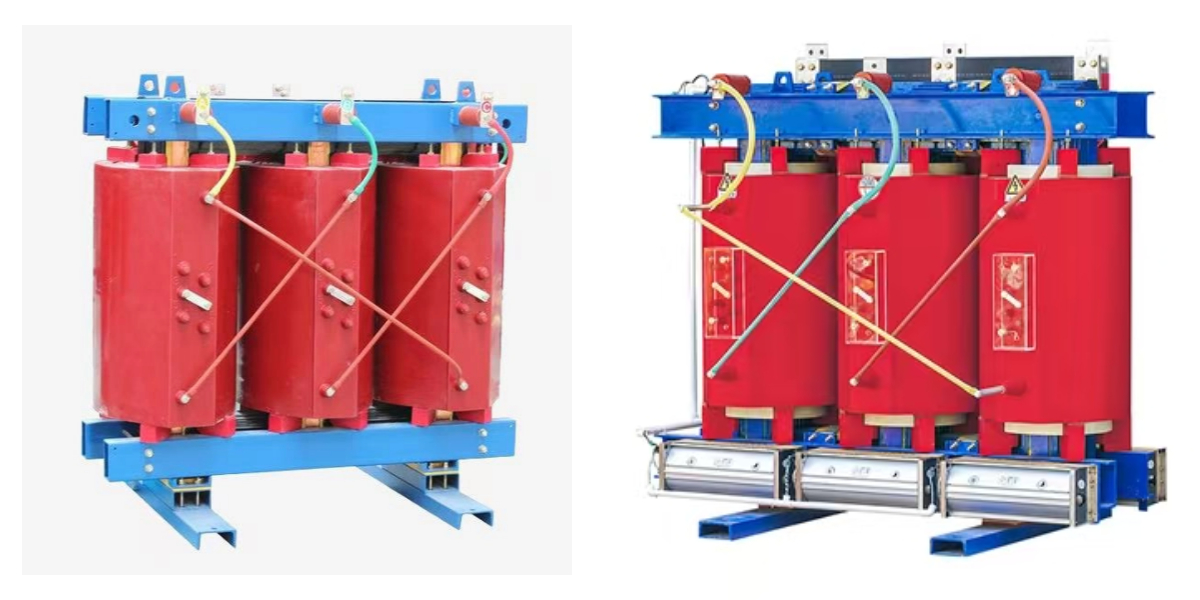

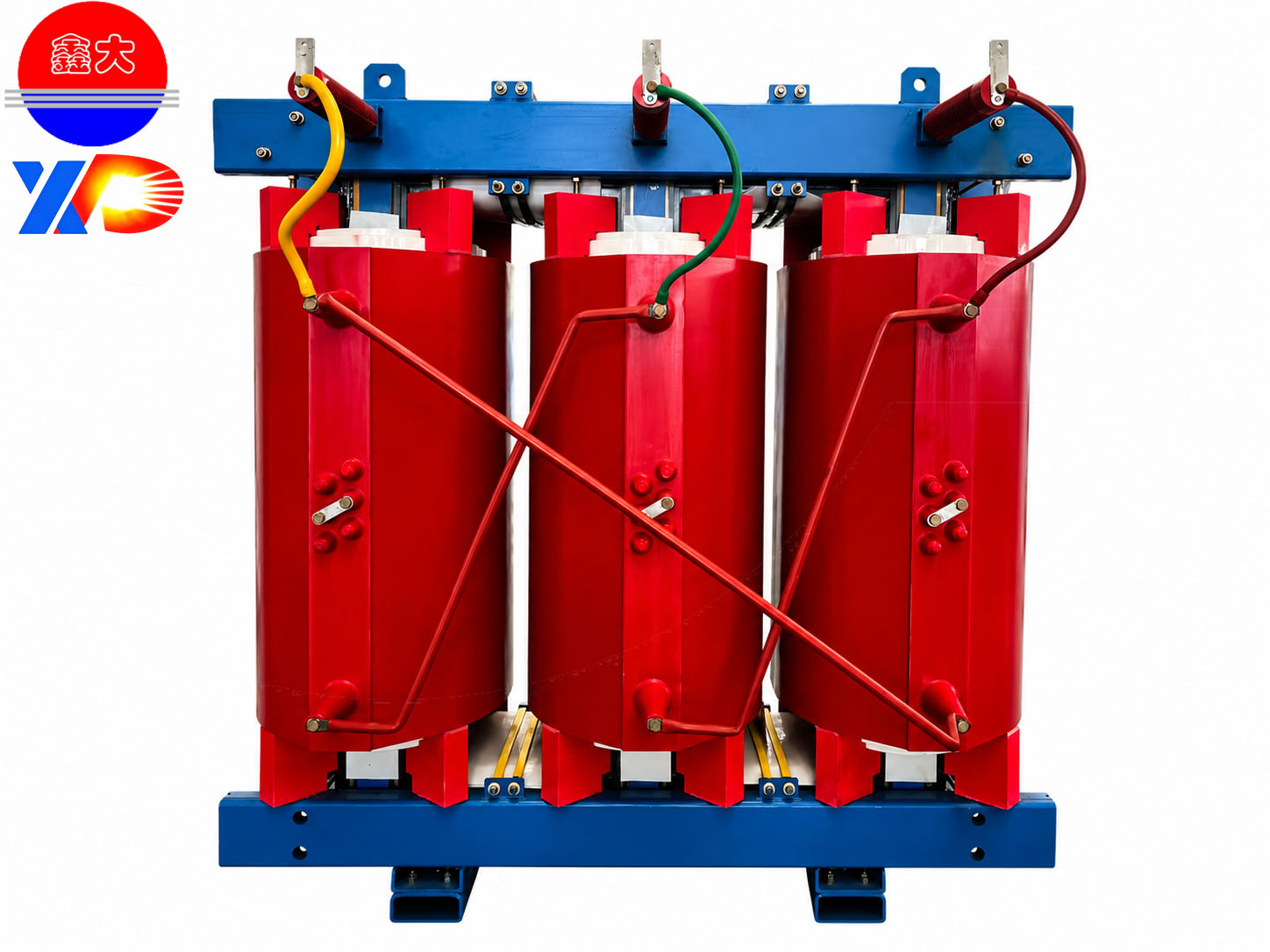

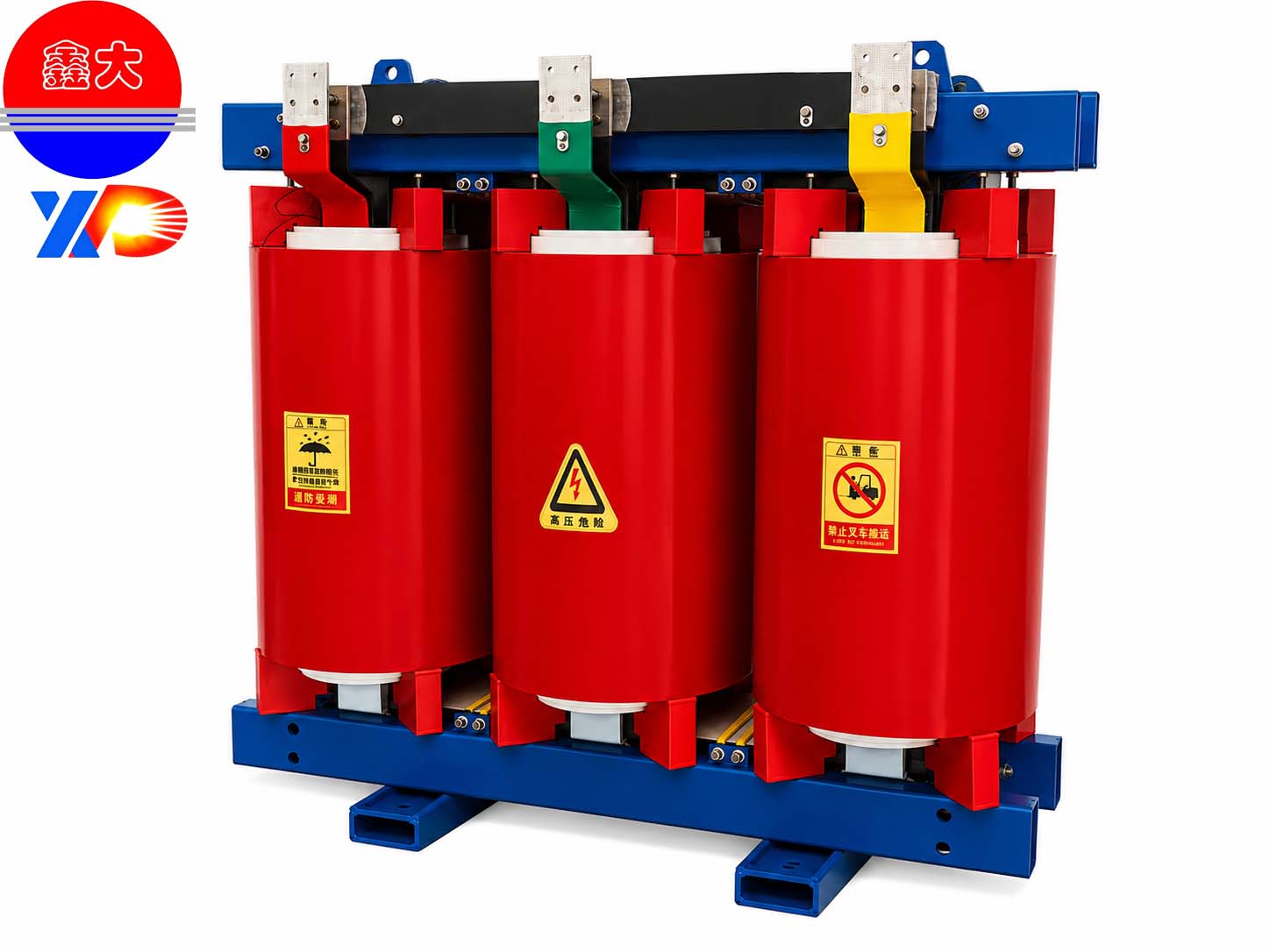

SCB Series Epoxy Resin Transformer, manufactured from...dry material,is an energy-saving powertransformer, characterized by high efficiency and energy conservation, as well as significant cost savings. It uses vacuum casting technology with epoxy resin and foil winding, resulting in a completely oil-free design. It is fire-resistant, explosion-proof, environmentally friendly, and provides stable and reliable operation.
As key equipment in medium- and low-voltage distribution networks, it is widely used in urban power grid modernization, commercial buildings, industrial parks, public spaces, and other locations with high safety, energy conservation, and environmental protection requirements. It can be installed directly at the building's load center and is adaptable to a variety of challenging operating conditions.
2. Main advantages of the product
Safe and fireproof, suitable for various installation scenarios.
Its oil-free design and fire-resistant epoxy casting make it fire-resistant and self-extinguishing, completely eliminating hidden hazards such as oil leaks, fires, and explosions, and it complies with fire safety regulations. It can be installed directly in basements, distribution rooms, and densely populated areas without the need for an additional fire protection zone, saving installation space.
Eco-friendly and moisture-resistant material for difficult operating conditions.
There is no odor or toxic gas emissions during operation, and no soil or water contamination. Vacuum-cured windings are highly moisture-resistant, resistant to mold, salt fog, and contamination, and can operate normally at 100% relative humidity. They can be returned to service without pre-drying, making them suitable for humid southern regions and coastal areas exposed to salt spray.
Stable and reliable operation with a long service life.
Windings manufactured using the integral curing method exhibit high mechanical strength and high resistance to sudden short circuits and shock waves. Partial discharge is extremely low (≤10 pC) with stable insulation, effectively preventing insulation aging.
Low noise and easy to maintain
An optimized magnetic circuit design reduces operating noise to 50–60 dB(A), compliant with noise standards for residential and office spaces. Its compact design, small size, and light weight ensure easy installation. The unit requires little or no maintenance and is equipped with an intelligent temperature controller for overheating alarms, protection, and fan control. Some models support RS485 communication for remote monitoring and control.
3. Basic technical parameters (customizable)
Nominal lifting capacity |
10 kVA-5000 kVA |
Typical values: 10 kVA-5000 kVA |
Connection group |
Dyn11 (default), Yyn0 |
Customizable |
No-load current |
≤2.5% (for ≥100 kVA) |
The smaller capacity has a slightly higher ratio |
Short-circuit impedance |
4%, 6% (default) |
Customizable |
Insulation class |
Class F (maximum temperature 155℃) |
Excellent heat resistance and ageing resistance. |
Cooling mode |
AN (natural air cooling) / AF (forced air cooling) |
120-125% of rated load at AF |
Noise level |
≤50–60 dB(A) |
Complies with residential and public area standards. |
Degree of protection |
IP20 (default), IP30 (configurable) |
IP30 protection rating is suitable for dusty industrial environments. |
Temperature Adjustment |
Intelligent controller (alarm, shutdown, fan control) |
Additional RS485 interface for remote monitoring. |
